Custom fused silica half ball lens

Hình ảnh lớn : Custom fused silica half ball lens

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Thượng Hải, Trung Quốc
Hàng hiệu:	Advance
Số mô hình:	tùy biến

Thanh toán:

Số lượng đặt hàng tối thiểu:	10 miếng
Giá bán:	$1.00 - $100.00/Pieces
chi tiết đóng gói:	Túi hút chân không / Túi PE / Túi bọt khí / Bọt EPE / Thùng carton
Khả năng cung cấp:	500000 Piece / Pieces mỗi tuần

Tiếp xúc

Custom fused silica half ball lens

Sự miêu tả

Sự bảo đảm:	-	Hỗ trợ tùy chỉnh:	OEM, ODM
Sử dụng:	Quang	Kết cấu:	Plano-lồi
Hình dạng:	Hình trụ	Tên sản phẩm:	Ống kính hình trụ
bahan:	BK7, Thạch anh, Hồng ngoại, Sapphire, Ge, Si, ZnSe, CaF2, v.v.	Chiều dài:	5-200mm
Chiều rộng:	5-200mm	Bán kính:	> 3 mm
Tiêu cự:	-2000mm-2000mm	Độ chính xác bề mặt:	N = 1-3
Decenter:	3 "-1 '	Chất lượng bề mặt:	10 / 5-60 / 40
Khu vực ứng dụng:	Hình ảnh, Ánh sáng, Laser, v.v.	Hải cảng:	Thượng Hải hoặc yêu cầu

Specification

Range of diameter	Dia.0.7mm-Dia.400mm
Range of curve radius	R1.5-R∞ etc.
Tolerance of diameter	+/-0.1,+/-0.01,+/-0.005 etc.
Surface accuracy	λ,1/2λ,1/4λ,1/10λ etc.
Tolerance of Thickness	+/-0.1,+/-0.05,+/-0.01 etc.
Centration	+/-2',+/-1' etc
Aperture N	5,1 etc.
Irregularity ΔN	2,1,0.5,0.2 etc.
Surface quality	60/40.40/20,20/10,10/5 etc

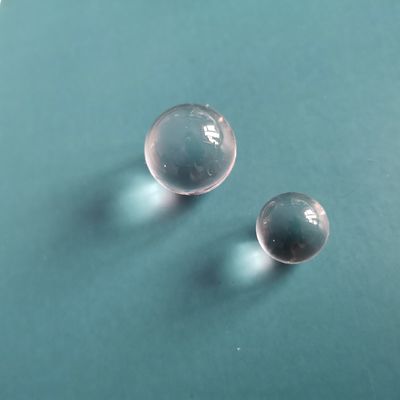

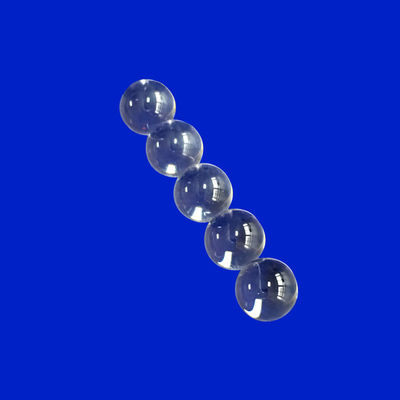

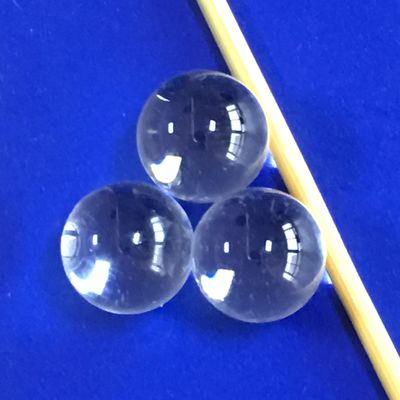

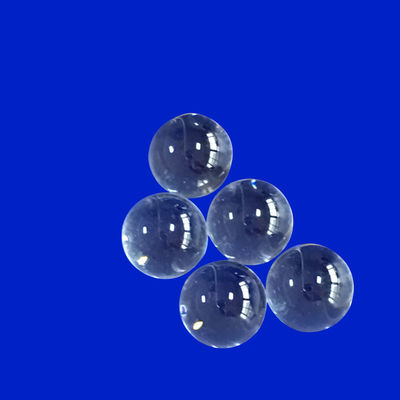

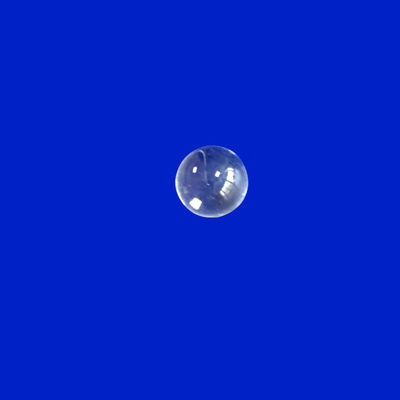

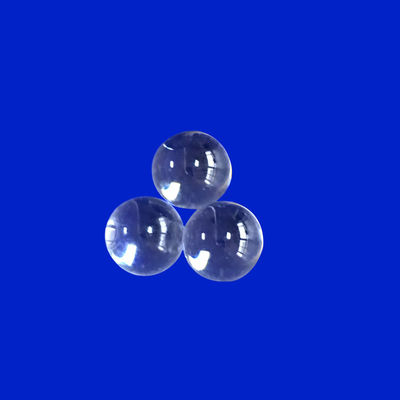

Ball lens

Spherical Ball Lenses are commonly used for laser Collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and
fiber-to-detector coupling.Larger spheres are easier to handle and ease the sensitivity of translational alignment. However,
smaller spheres has the benefit of fitting into smaller packages.Ball lenses are highly polished spheres made of optically
transparent homogeneous materials.Carefully controlled manufacturing process produces spheres with precise diameters and
unsurpassed Surface quaWe supply optical spherical ball lens,Half-ball (hemispherical) lenses are ideal for applications such as
fiber communication, endoscopy, micros copy, optical pick-up devices, and laser measurement systems.

Recommend Products

Company Profile

Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc. Company Advantages: 1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;

Certifications

Exhibition

Packing & Delivery

FAQ

Q:What are your main products or Which fiefd do your products be used?
A:We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q:What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.

Q:What's your MOQ?
A:10pcs.

Q:What's your leadtime?
A:1day for inventory and 25~35days for the new project.

Q:What's your shipping type?
A:Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q:What's the payment condition?
A:T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q:What's your quality guarantee period?
A:Three years.
